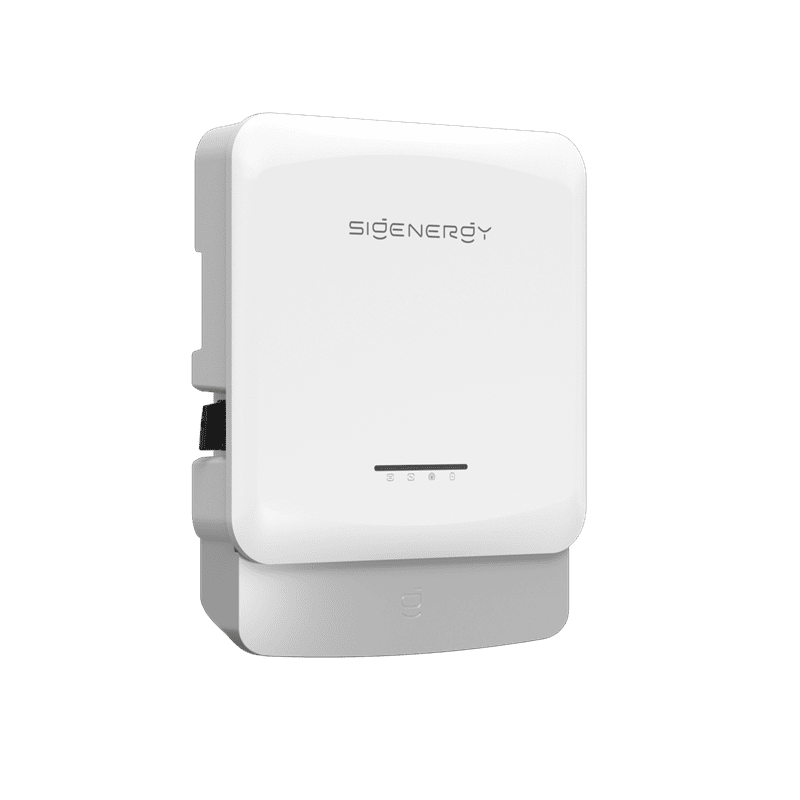

Hybrid Inverter 10.0 kW Three Phase 2
The Sigenergy 10kW 3-Phase Hybrid Inverter is a powerful solar solution defined by its whisper-quiet, fanless operation and ultra-slim, durable IP66-rated housing with a depth of just 99 mm. It is future-proof, allowing seamless, cost-effective upgrades to a full battery storage system at any time.
Backed by 10 Year warranty.
Key Performance Data:
High Efficiency & Power: Achieve a maximum efficiency of up to 98.8% with a nominal AC output of 3.0 kW (3-phase) and a maximum apparent power of 3.3 kVA.
Whisper-Quiet Operation: Its innovative fanless design ensures operation at an ultra-low noise level, making placement flexible without disturbance.

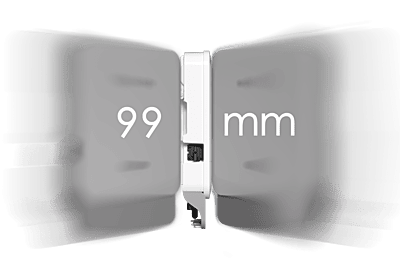

Compact Dimensions: The inverter boasts an industry-leading ultra-slim profile with a depth of just 99 mm.
Durability and Reliability: Built for long-term use in varying climates, the unit carries a high IP66 protection rating and operates reliably in temperatures from -30 °C to 60 °C.
Optimized Input: Features 2 MPPT trackers with a wide DC input voltage range of 160 V ~ 1000 V to maximize the yield from your PV array (with a maximum PV input of 6000 Wp).
Low Consumption: Designed for minimal waste, characteristic of high-efficiency hybrid designs.
App control (mySigen): AI-based scheduling, live monitoring, remote setup.
Key Information
- DC Input (PV)20000 W
- MPPT Voltage Range160 ~ 1000 V
- Number of MPP Trackers2
- Number of PV Strings per MPPT1/2
- Max. Input Current per MPPT16 A
- Nominal Output Power10000 W
- Nominal Output Current15.2 A
- Dimensions (W / H / D)475 / 568 / 99 mm
- IP RatingIP66
- Standby Power Consumption≤ 5 W
- Noise Level≤ 29 dB
