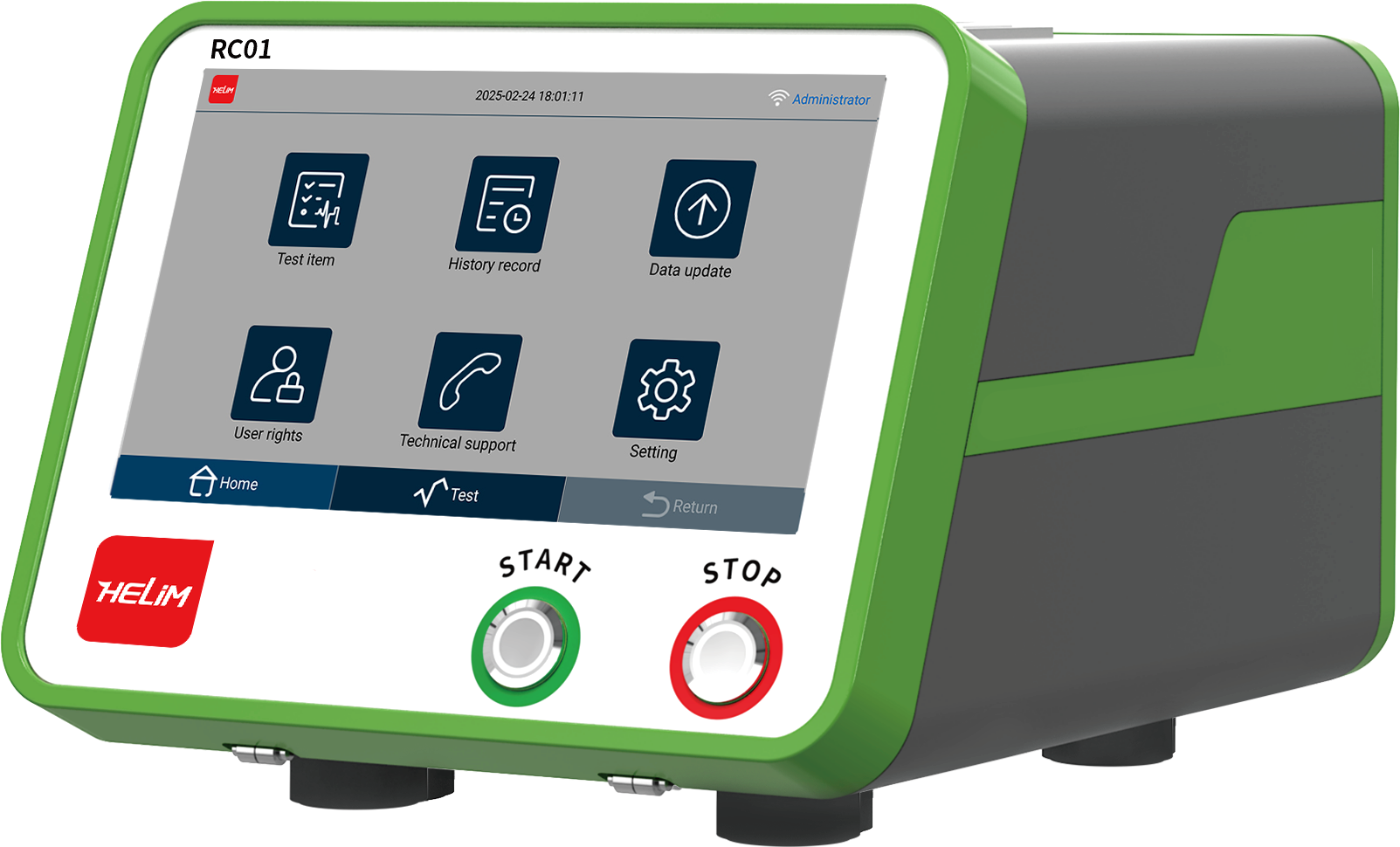

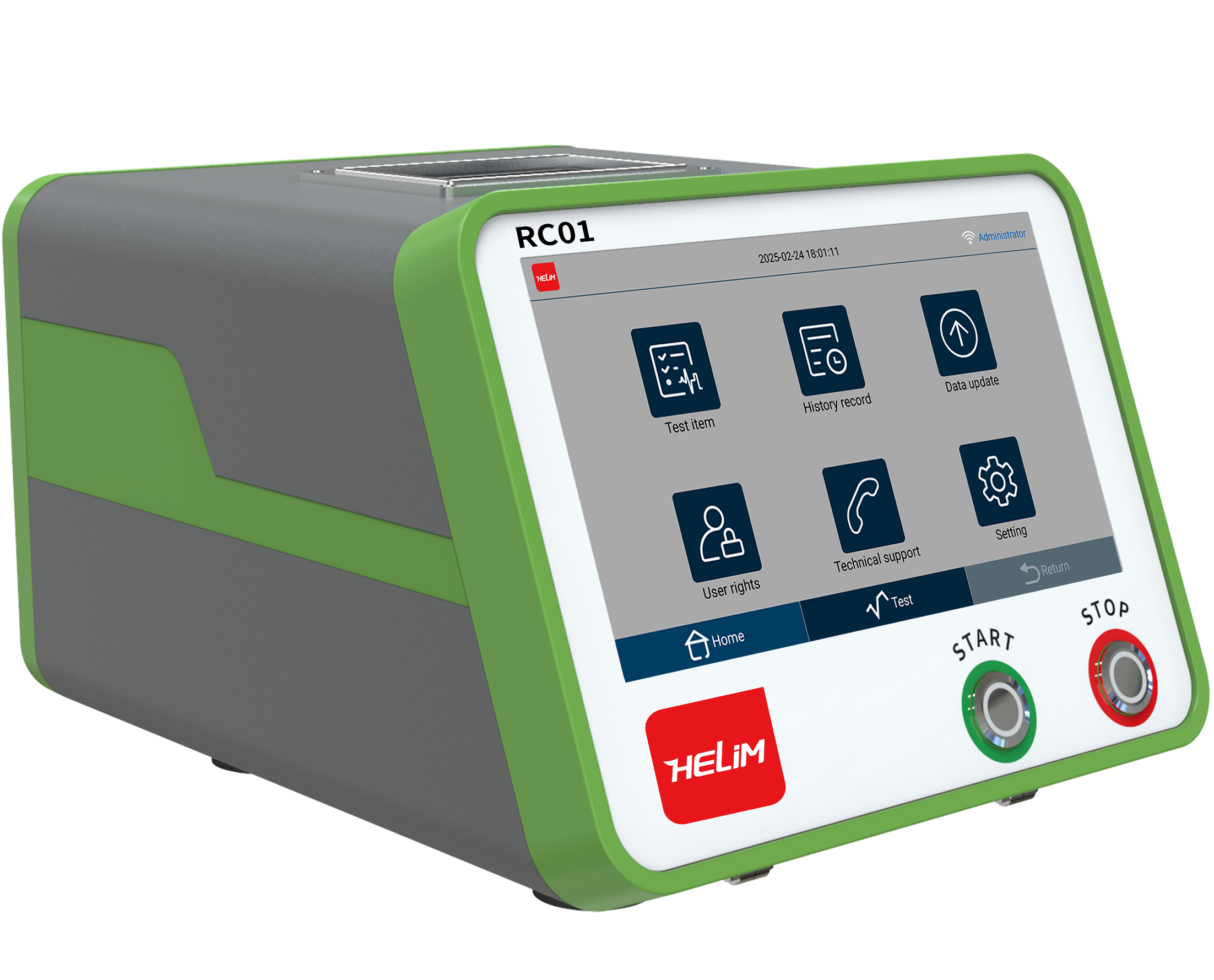

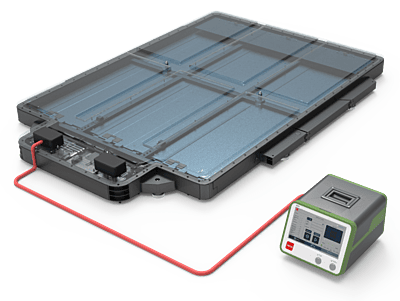

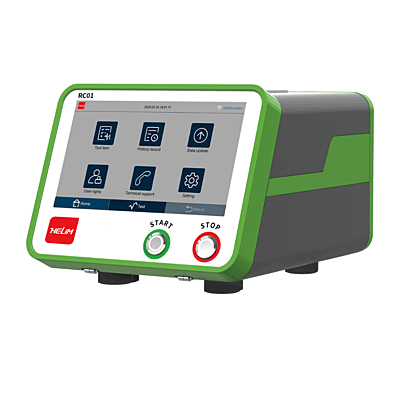

RC01 EV Battery Air Leak Tester (High & Low Pressure)

Electrolyte detecting

• Electrolyte Testing:
  No

Technical Details

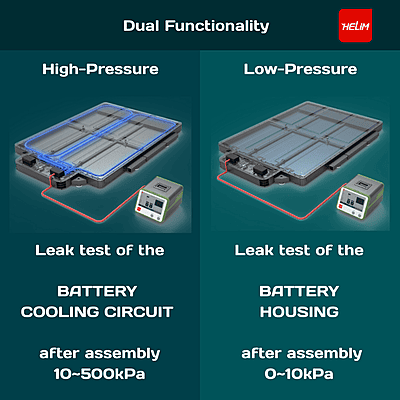

• Low pressure range:
  0~10kPa
• High pressure range:
  10~500kPa
• Testing resolution:
  0.1Pa
• Pressure sensor accuracy:
  +/-0.02%FS+0.05%FS
• Pressure repetition accuracy:
  0.1%FS
• Pressure regulating mode:
  automatic pressure regulation

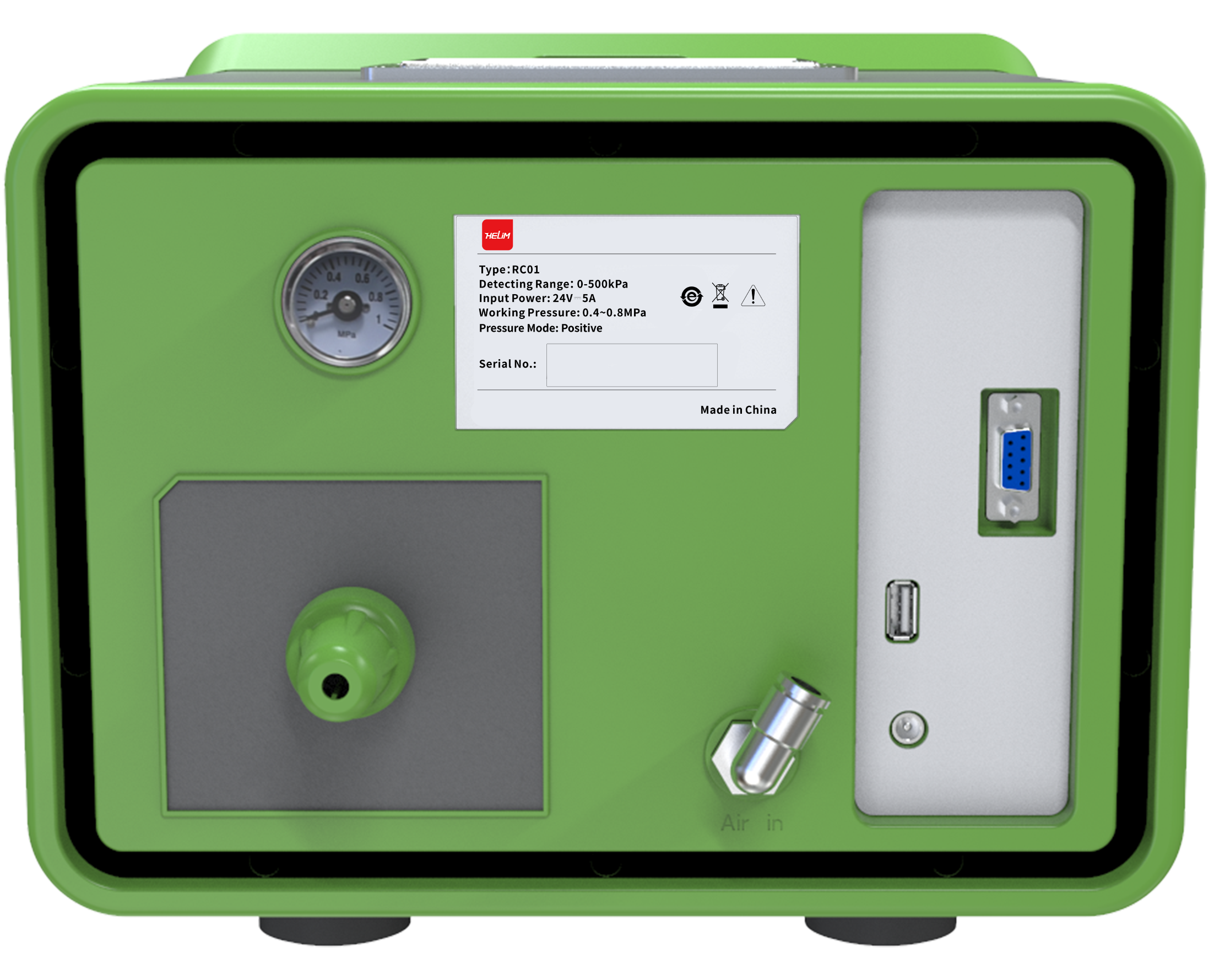

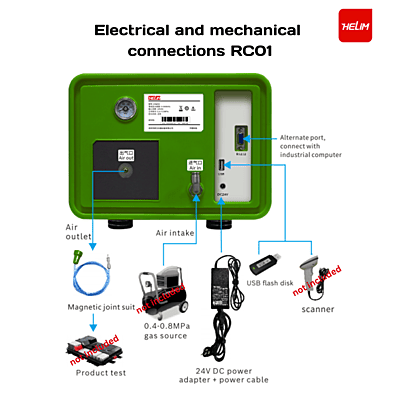

• Air Supply:
  0.4~0.8MPa (clean and dy air)
• Data Storage:
  16GB

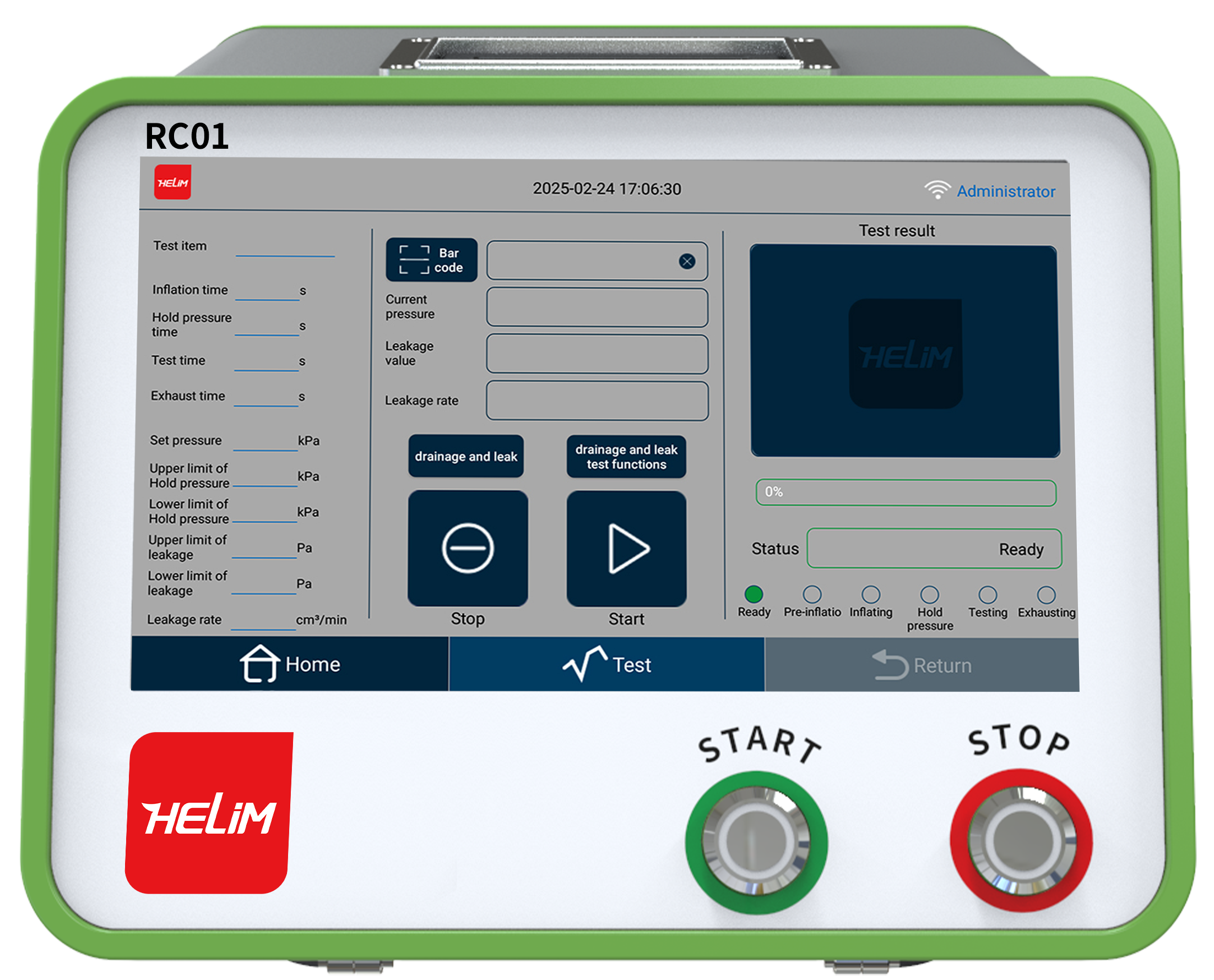

• Display:
  10.1" multi-point color touch screen
• System:
  Android 4.4.2
• Core Module:
  CPU：1.4GHz / RAM：1GB
• Number of programs:
  1000 Groups
• Operating temperature:
  0~50°C
• Power supply:
  AC110~240V 50Hz
• Dimensions:
  280x374x232 mm
• Net Weight:
  9.2kg
