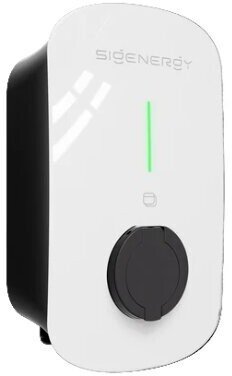

EV AC Charger 22 kW 4G Type2 Socket with shutter White - Sigen
The Sigenergy EV AC Charger 22 kW is a high-power, three-phase smart charging station. It delivers 22 kW AC output and uses a Type 2 socket with a shutter. It features 4G connectivity for remote control and smart scheduling, and integrates seamlessly with the Sigenergy solar and battery ecosystem to enable green power charging and dynamic load management. It is designed for durability with an IP65/IK10 rating.
Key Information
Power Output:22 kW nominal charging power on a three-phase AC system.
Vehicle Connection: Type 2 socket with shutter (untethered).
Connectivity: Features built-in 4G and supports WLAN/Fast Ethernet for remote monitoring, over-the-air updates, and control via the mySigen App.
Smart Charging Modes: Supports Sigen AI Mode (dynamic tariff), PV Surplus Charging (with SigenStor), and Fast Charging, prioritizing solar energy use.
Safety & Protection:IP65 ingress protection and IK10 impact resistance. Includes integrated residual direct current protective device (RCD-PD) fault detection (AC 30 mA+DC 6 mA), PEN protection, ground fault protection, and surge protection.
Dynamic Load Management: Supported functionality to automatically balance power consumption and prevent grid overload, which requires the use of a Sigen Power Sensor.
Installation: Designed for wall-mounted installation with flexible bottom, top, and rear cable entries for simplified setup and aesthetics.
OCPP Compatibility: Supports OCPP 1.6J Edition 2.
Dimensions (W/H/D):234/384/139 mm (Case C).
Operating Temperature Range:−30 to 55°C.
