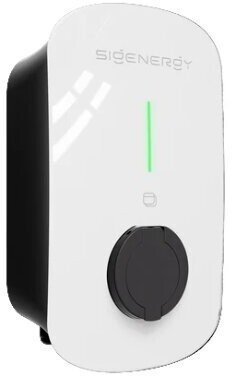

EV AC Charger 7 kW 4G Type2 Socket with shutter White - Sigen

Key Information

• Power Output:7 kW nominal charging power on a single-phase AC system.




• Vehicle Connection:Type 2 socket with shutter (untethered).




• Connectivity: Features built-in 4G and supports WLAN/Fast Ethernet for remote monitoring, firmware updates, and control via the mySigen App.




• Smart Charging Modes: Supports Sigen AI Mode with dynamic tariff ,

  PV Surplus Charging (with the SigenStor and a Power Sensor) , and

  Fast Charging.




• Safety & Protection: The charger has an IP65 ingress protection rating and

  IK10 protection rating for worry-free outdoor use. It includes integrated residual direct current protective device (

  RCD-PD) fault detection (AC 30 mA+DC 6 mA) , PEN protection , ground fault protection , and dynamic load management.




• Dynamic Load Management: Supported functionality to prevent grid overload, which requires the use of a Sigen Power Sensor.




• Installation: Designed for wall-mounted installation with flexible

  bottom, top, and rear cable entries to streamline the setup process.




• OCPP Compatibility: Supports OCPP 1.6J Edition 2.




• Dimensions (W/H/D): 234/384/139 mm.




• Operating Temperature Range: −30 to 55∘C.
