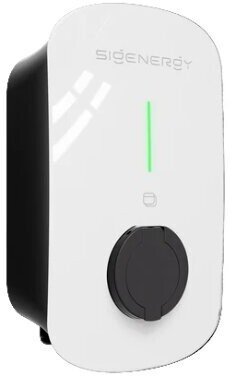

EV AC Charger 11 kW 4G Type2 Socket with shutter White - Sigen
The Sigenergy EV AC Charger 11 kW 4G Type2 Socket with Shutter is a powerful, smart EV charging station ideal for three-phase residential and commercial setups. It provides 11 kW AC output and uses 4G connectivity for remote monitoring, smart scheduling, and control via the mySigen App. Designed for durable indoor/outdoor use, it features high IP65 and IK10 protection ratings and an untethered Type 2 socket with a safety shutter.
Key Information
Power Output:11 kW nominal charging power on a three-phase AC system.
Vehicle Connection:Type 2 socket with shutter (untethered).
Connectivity: Features built-in 4G and supports WLAN/Fast Ethernet for remote monitoring, over-the-air updates, and control via the mySigen App.
Smart Charging Modes: Supports Sigen AI Mode (dynamic tariff), PV Surplus Charging (with SigenStor), and Fast Charging, prioritizing solar energy use.
Safety & Protection:IP65 ingress protection and IK10 impact resistance. Includes integrated residual direct current protective device (RCD-PD) fault detection (AC 30 mA+DC 6 mA), PEN protection, ground fault protection, and surge protection.
Dynamic Load Management: Supported functionality to automatically balance power consumption and prevent grid overload, which requires the use of a Sigen Power Sensor.
Installation: Designed for wall-mounted installation with flexible bottom, top, and rear cable entries for simplified setup and aesthetics.
OCPP Compatibility: Supports OCPP 1.6J Edition 2.
Dimensions (W/H/D): 234/384/139 mm.
Operating Temperature Range: −30 to 55∘C.
