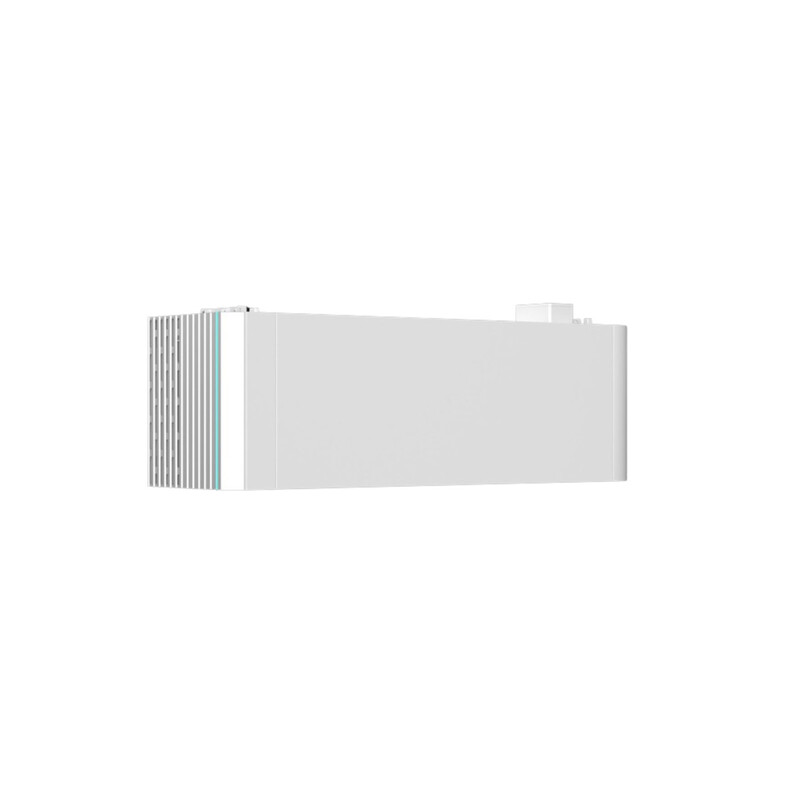

Battery 8 kWh - SigenStor
The Sigenergy SigenStor battery module is a key component of an AI-optimized, 5-in-1 home energy system, offering 7.8 kWh of safe LiFePO4 storage that is scalable up to six units per stack.
Backed by 10 Year warranty.
Key Information
Capacity & Chemistry: The module utilizes high-quality LiFePO4 (Lithium Iron Phosphate) cells, offering a total energy capacity of 8.06 kWh (nominal 8 kWh).
Performance: Achieves 100% Depth of Discharge (DOD), allowing users to tap into the entire stored energy, and boasts an ultra-long cycle life of 10,000 cycles.
Power Rating: Provides a maximum charge/discharge power of 4000W.
Safety Standards: Features an industry-leading 5-layer battery safety protection system for exceptionally reliable and safe operation.
Scalability & Flexibility: An internal battery optimizer allows for simplified parallel connection and supports mixing of old and new battery modules, as well as packs from different cell vendors.
Environmental Protection: The unit has an ingress protection rating of IP66, making it robust against dust and strong water jets for versatile indoor or outdoor installation.
Installation: Supports both Floor standing and Wall-mounted installation methods, with cooling managed by natural convection.
Key Information
- Cell capacity280Ah
- Total energy capacity8.06kWh
- Usable energy capacity7.8kWh
- Max. charge / discharge power4000W
- Dimensions (W / H / D)767 / 270 / 260
- Protection RatingIP66
